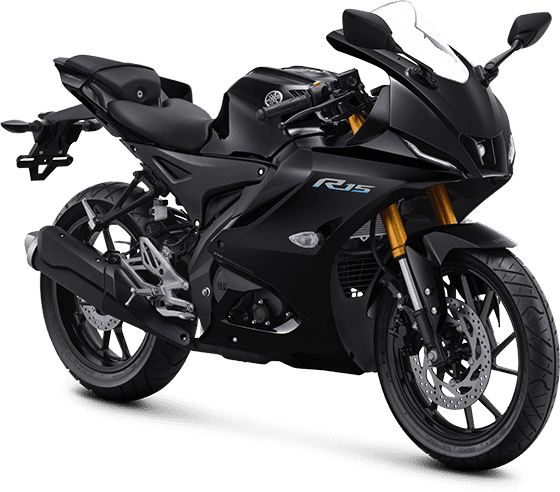

R15 Connected

 :
 :

Product by :

Engine Type    :   Liquid Cooled, 4-Stroke, SOHC, 4 Valve, VVA

Number/Position of Cylinders    :   Single Cylinder

Cylinder Fill (CC)    :    155.09 cc

Diameter x Step    :   58.0 x 58.7 mm

Compression Ratio    :   11.6 ± 0.4 : 1

Maximum Power    :    14.2 kW / 10000 rpm

Maximum Torque    :    14.7 Nm / 8500 rpm

Starter System   :   Electric Starter

Lubrication System    :   Wet Sump

Engine Oil Capacity    :  Total =1.15L; Periodic = 0.85L; Replace Oil Filter = 0.95L L

Fuel System    :   Fuel Injection

Clutch Type    :   Multi Wet Clutch

Transmission Type    :   Manual

Transmission Operation Pattern    :   1-N-2-3-4-5-6



Frame Type    :   Deltabox

Front Suspension   :   Telescopic Fork (Inverted)

Rear Suspension    :   Link Monoshock

Front Tire    :   100/80-17M/C 52P

Rear Tire    :   140/70-17M/C 66S

Front Brake    :   Disc Brake

Rear Brake    :   Disc Brake



L X L X T (Length x Width x Height)     :   1990 x 725 x 1135 mm

Wheelbase    :   1325 mm

Lowest Distance To Ground    :   170 mm

Seat Height    :   815 mm

Loading Weight    :    137 Kg (All New R15), 140 Kg (All New R15M)

Gasoline Tank Capacity    :    11 L



Ignition System    :   TCI

Battery    :   GTZ4V/YTZ4V (All New R15), YTZ6V (All New R15M)

Spark Plug Type    :   MR8E9

Color -
Size 1990 mm
Raw Material Metal, Plastic, Etc
Capacity (Month) 150 Unit
