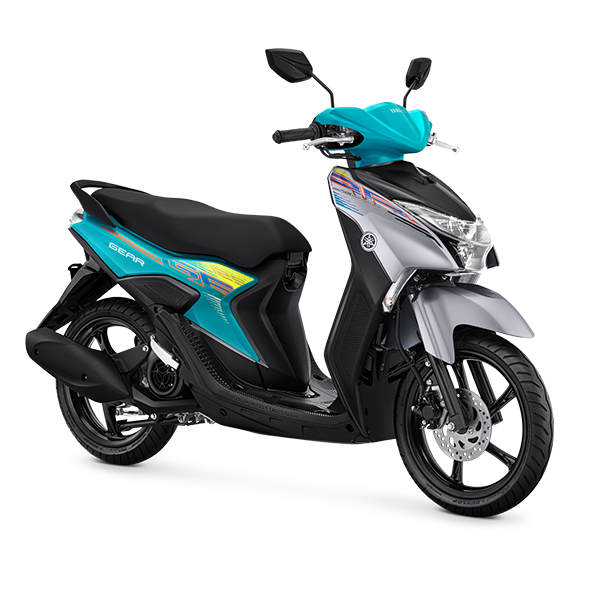

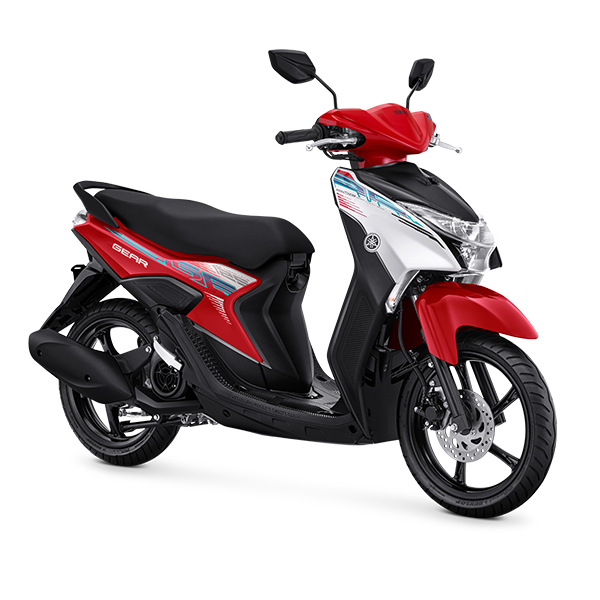

Yamaha Gear 125 Standard

 :
 :

Product by :

ENGINE



Cylinder Volume: 124.96 cc

Maximum Power: 7.0 kW / 8000 rpm

Maximum Torque: 9.5 Nm / 5500 rpm

Starter System: Electric & Kick Starter

Lubrication System: Wet Lubrication

Engine Oil Capacity: Assembly = 0.84L ; Regular = 0.80 L

Fuel System: Fuel Injection

Clutch Type: Dry Centrifugal Clutch

Transmission Type: Automatic V-Belt

Engine Type: Air-cooled, 4-Stroke, SOHC

Cylinder Arrangement: Single Cylinder

Bore x Stroke: 52.4 x 57.9 mm

Compression Ratio: 9.5 : 1



FRAME



Frame Type: Underbone

Front Suspension: Telescopic

Rear Suspension: Unit Swing

Front Tire: 80/80-14M/C (43P)

Rear Tire: 100/70-14M/C (51P)

Front Brake: Disc Brake

Rear Brake: Drum Brake



DIMENSION



Net Weight: 96 Kg (Type S); 95 Kg (Standard Type)

Fuel Tank Capacity: 4.2 L

Ground Clearance: 135 mm

L x W x H: 1870 mm x 685 mm x 1060 mm

Wheelbase: 1260 mm

Seat Height: 750 mm



ELECTRICITY



Ignition System: TCI

Battery: YTZ6V (Type S); YTZ4V/GTZ4V/NTZ4V (Standard Type)

Spark Plug Type: NGK/CR6HSA

Color -
Size Net Weight: 96 Kg (Type S); 95 Kg (Standard Type)
Raw Material -
Capacity (Month)
