SUPREME Low Voltage Cable

Supreme Low Voltage Aluminum Cable is cables uses for Lower Voltage (450 – 750 up to 1,200 V) which use Aluminum as conductor, which provides a better conductivity-to-weight ratio than copper, and therefore is also used for wiring power grids, including overhead power transmission lines and local power distribution lines, as well as for power wiring of some airplanes. Our cables are certified with IEC certification

Following are the types of Low Voltage Aluminum Cable we provide:

NAYA (IEC 60227-3)

Voltage 450/750 V

Size 16-400 mm2

Aluminum Conductor and PVC Insulated

NAYY (IEC 60502-1)

Voltage 0.6/1(1.2) kV

Size 16-500 mm2

Aluminum Conductor, PVC Insulated, and PVC Sheathed

NAYRY (IEC 60502-1)

Voltage 0.6/1(1.2) kV

Size 16-500 mm2

Aluminum Conductor, PVC Insulated, Aluminum Wire Armored, and PVC Sheathed

NAYFGbY (IEC 60502-1)

Voltage 0.6/1(1.2) kV

Size 16-300 mm2

Aluminum Conductor, PVC Insulated, Galvanized Flat Steel Wire Armored, and PVC Sheathed

NA2XA (IEC 60502-1)

Voltage 0.6/1(1.2) kV

Size 16-500 mm2

Aluminum Conductor, XLPE Insulated, and PVC Sheathed

NA2XY (IEC 60502-1)

Voltage 0.6/1(1.2) kV

Size 16-500 mm2

Aluminum Conductor, XLPE Insulated, and PVC Sheathed

NA2XFGbY (IEC 60502-1)

Voltage 0.6/1(1.2) kV

Size 16-300 mm2

Aluminum Conductor, XLPE Insulated, Galvanized Flat Steel Wire Armored, and PVC Sheathed

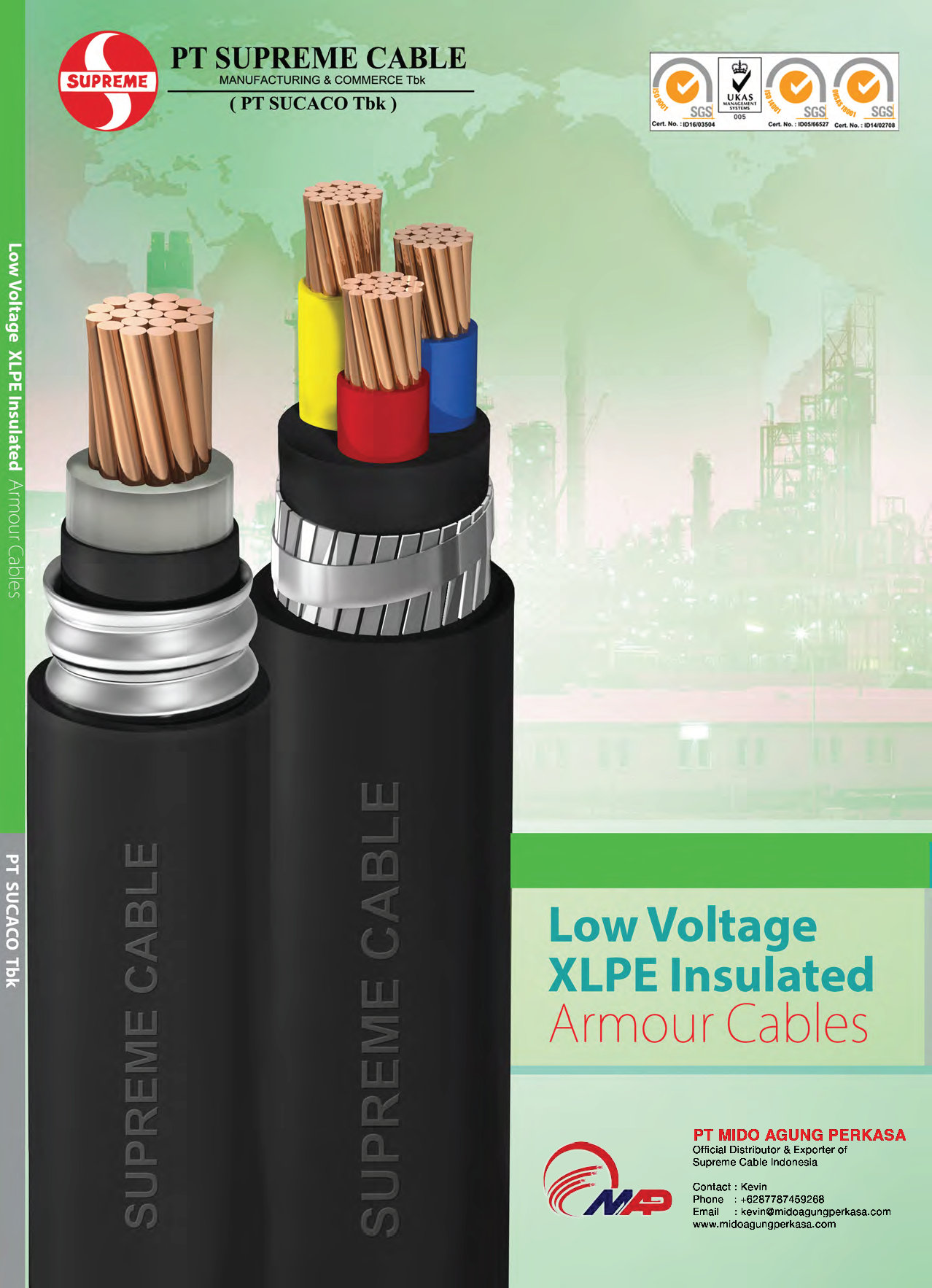

SUPREME Low Voltage Armored Cable is specialized for voltage use 450 – 750 – 1200 Volts, used for indoor and outdoor installation direct burial, preferably used where considerable mechanical stress must be envisage.

Types of Low Voltage Armored Cable we provide:

N2XBY

Copper Conductor, XLPE Insulated, Double Aluminum Tape/Double Galvanized Steel Tape Armored, PVC Sheathed

1 – 5 Cores & Control Cables

Size 10-500 mm2 (max 6 mm2 for Control Cables)

N2XRGbY & N2XFGbY

Copper Conductor, XLPE Insulated, Galvanized Round Steel Wire/Flat Steel Wire Armored, PVC Sheathed

2 – 5 Cores & Control Cables

Size 10-150 mm2 (max 6 mm2 for Control Cables)

N2XRY

Copper Conductor, XLPE Insulated, Aluminum Round Wire Armored, PVC Sheathed

Single Cores

Size 10-500 mm2

N2XALCAY

Copper Conductor, XLPE Insulated, Aluminum Tape Corrugated Armored, PVC Sheathed

1-5 Cores

Size 10-300 mm2

CV TAZV (600 Volt)

Copper Conductor, XLPE Insulated, Double Galvanized Steel Tape Armored, PVC Sheathed

2-4 Cores

Size 10-300 mm2

SUPREME Low Voltage non-Armored Cable is specialized for voltage use 450 – 750 – 1200 Volts, used for indoor and outdoor installation laying in the ground where the cables does not sustain mechanical damage/stress.

Types of Low Voltage non-Armored Cable we produce:

N2XA

Single Core – 600/1000 (1,200 Volts)

Size 1,5 – 500 mm2

Copper Conductor, XLPE Insulated

N2XY

1 – 5 Core – 600/1000 (1,200 Volts)

Size 1,5 – 500 mm2

Copper Conductor, XLPE Insulated, and PVC Sheathed

N2XSY

1 – 5 Core – 600/1000 (1,200 Volts)

Size 1,5 – 500 mm2

Copper Conductor, XLPE Insulated, Metallic Screened, and PVC Sheathed

N2XCY

1 – 5 Core – 600/1000 (1,200 Volts)

Size 1,5 – 500 mm2

Copper Conductor, XLPE Insulated, Metallic Wire Screened, and PVC Sheathed

CV

1 – 4 Core – 600 Volts

Size 1,5 – 500 mm2

Copper Conductor, XLPE Insulated, PVC Sheathed

NF2X/NFA2x

2 & 4 Core – 600/1000 (1,200 Volts)

Size 1,5 – 35 mm2

Twisted XLPE Insulated

NFA2X-T

2 & 3 Core – 600/1000 (1,200 Volts)

Size 1,5 – 95 mm2

Twisted XLPE Insulated, Neutral Messenger

MULTIPLEX

Duplex/Triplex/Quadruplex – 600/1000 (1,200 Volts)

Aluminum Conductor, XLPE Insulated, Neutral Messenger

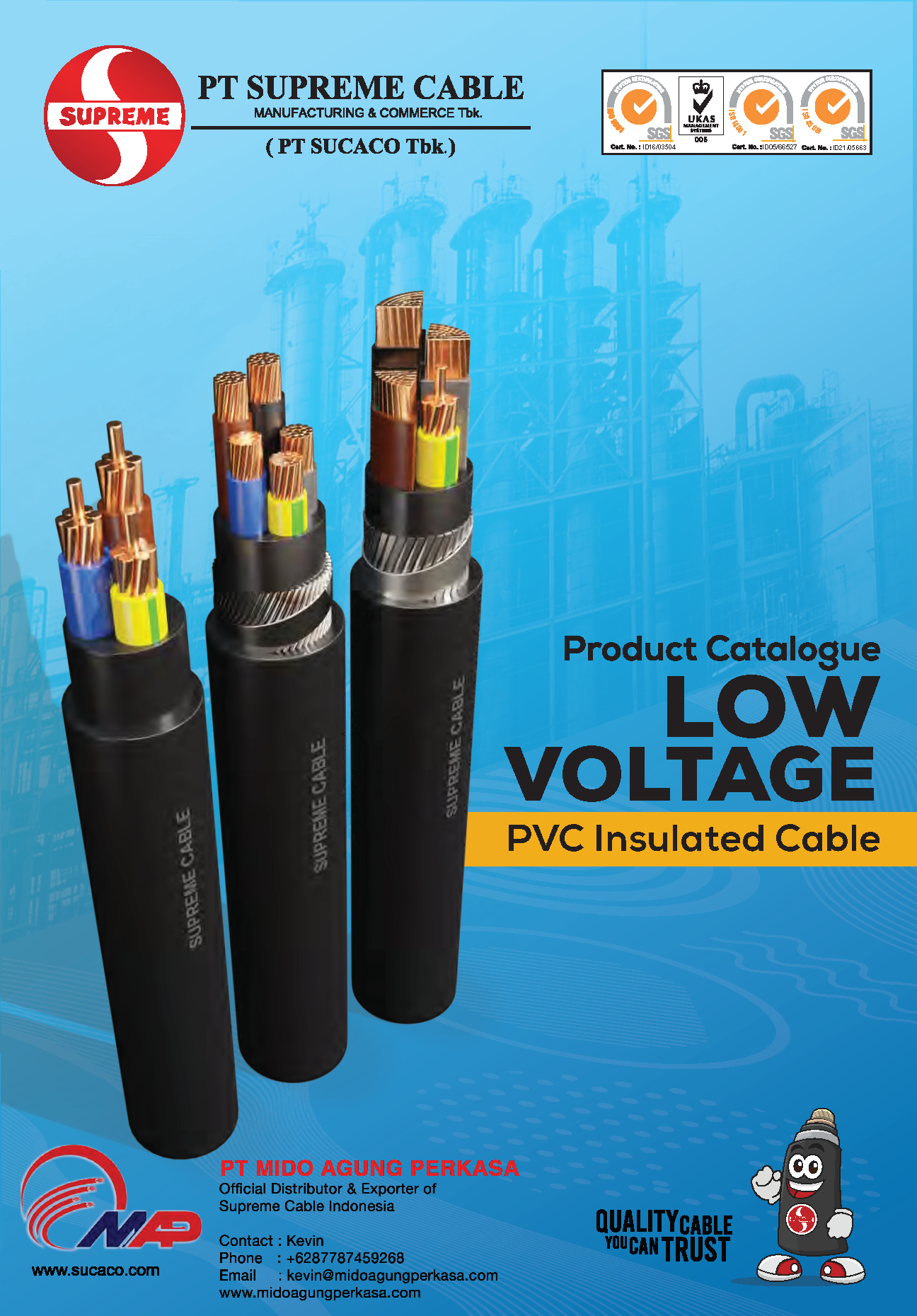

Supreme Low Voltage PVC Cable is cables uses for Lower Voltage (450 – 750 up to 1,200 V) which use PVC as Insulator. Our cables are certified with IEC certification

Following are the types of Low Voltage PVC Cable we provide:

CU/PVC (NYA)

Cu/PVC/PVC (NYY)

Cu/PVC/AWA/PVC (NTRY)

Cu/PVC/SWA/PVC (NYRGbY)

Cu/PVC/SFA/PVC (NYFGbY)

Cu/PVC/CTS/PVC (NYSY)

Cu/PVC/CWS/PVC (NYCY)

Cu = Copper Conductor

PVC = PVC Insulated

PVC = PVC Sheathed Cable

AWA = Aluminum Wire Armored

SWA/SWF = Galvanized Round Steel Wire or Flat Steel Wire Armored

CTS = Copper Tape Screened

CWS = Copper Wire Screened

Voltage 450/750 (NYA) and 0.6/1(1.2) kV

1-5 cores

Size 1.5 – 400 mm2
