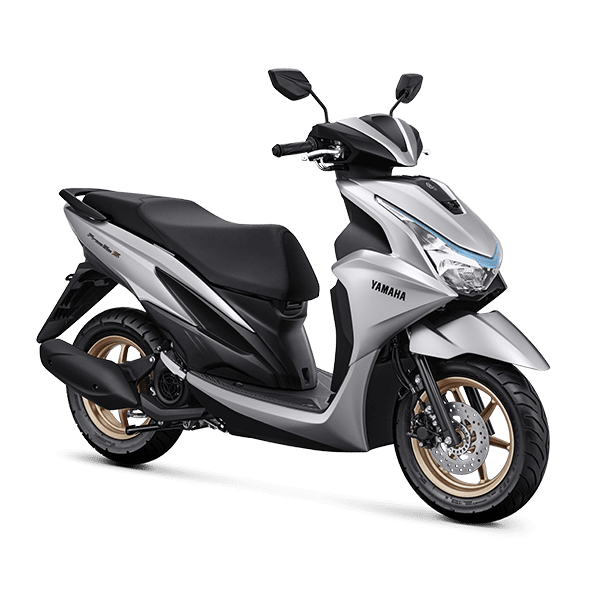

Yamaha FreeGo 125 Connected

 :
 :

Product by :

ENGINE



Engine Type: Air Cooled 4-Stroke, SOHC

Cylinder Arrangement: Single Cylinder

Bore x Stroke: 52.4 x 57.9 mm

Compression Ratio: 9.5 : 1

Cylinder Volume: 125 cc

Maximum Power: 7.0 kW / 8000 rpm

Maximum Torque: 9.5 Nm / 5500 rpm

Starter System: Electric Starter

Lubrication System: Wet Sump

Engine Oil Capacity: Total = 0.84 L ; Regular = 0.80 L

Fuel System: Fuel Injection

Clutch Type: Dry, Centrifugal Automatic

Transmission Type: V-belt Automatic



FRAME



Frame Type: Underbone

Front Suspension: Telescopic Fork

Rear Suspension: Unit Swing Front Tire: 100/90 - 12M/C 59J - Tubeless

Rear Tire: 110/90-12M/C 64L - Tubeless

Front Brake: Disc Brake

Rear Brake: Drum Brake



DIMENSION



Length x Width x Height: 1905 x 690 x 1115 mm

Wheelbase: 1275 mm

Seat Height: 780 mm

Curb Weight: 101 Kg (FreeGo 125), 102 Kg (FreeGo 125 Connected)

Fuel Tank Capacity: 4.2 L

Ground Clearance: 135 mm



ELECTRICITY



Spark Plug Type: NGK/ CR6HSA

Ignition System: TCI

Battery: YTZ4V, GTZ4V, NTZ4V (FreeGo 125), YTZ6V (FreeGo 125 Connected)

Color -
Size Length x Width x Height: 1905 x 690 x 1115 mm
Raw Material -
Capacity (Month)
